Lenna 403 Slide (16.6m2) Combo Gazebo/Pavilion
From €5,900
Product Enquiry
FREE DELIVERY throughout Mainland Spain (Please contact us for delivery to islands and other locations)
Delivery Date: Approx 8-10 weeks from order. Want it quicker? View our in-stock cabins
5 Year Warranty. Your new timber building is made to the highest standards
5.88m x 5.88m, Height: Under 2.5m, Wall Thickness: 28mm
Combination Gazebo and Sliding Door Summerhouse
Available on back-order
Description

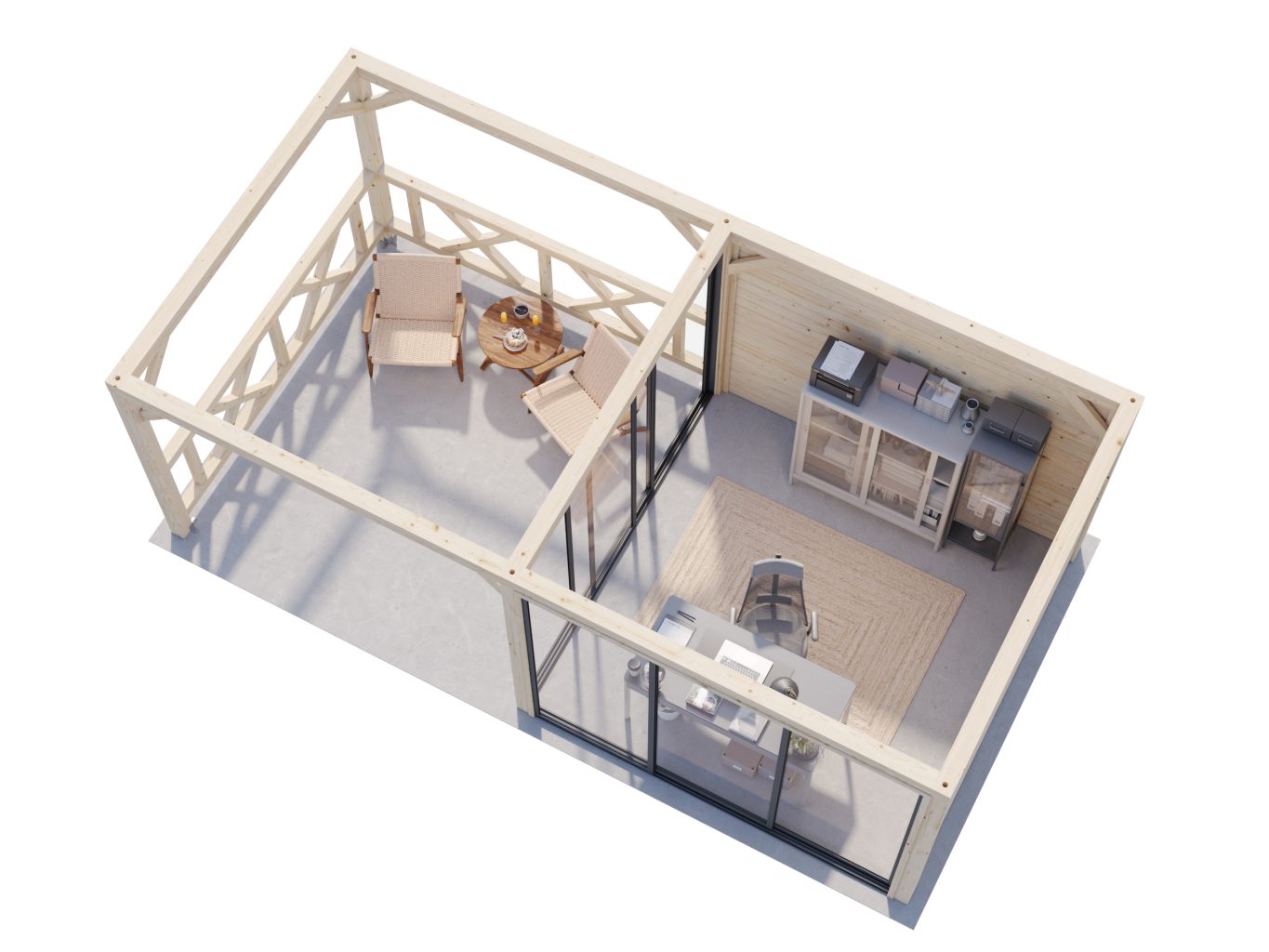

The Lenna 403 Slide is a beautifully balanced 16.6m² dual‑purpose outdoor building that combines an open pent‑roof gazebo with decorative balustrade panels and a modern enclosed room featuring two solid timber walls and two full‑height sliding glass walls. This hybrid layout makes the 403 Slide one of the most flexible models in the Lenna range, ideal for year‑round enjoyment, entertaining, relaxation, or creating a stylish multi‑use garden space.
Built using the same modular construction system as the Bianca range, the Lenna 403 Slide features premium Nordic spruce, heavy‑duty 120×120 mm posts, and a sleek pent roof for a contemporary architectural finish. The open gazebo section provides a bright, airy outdoor zone with classic criss‑cross balustrades, while the enclosed room offers shelter, privacy, and panoramic glazing thanks to the aluminium‑framed sliding doors.
Supplied with single‑glazed toughened glass as standard, the sliding door system can be upgraded to the Slide Plus 4‑16‑4 mm double‑glazed package for improved insulation and comfort. An optional floor kit is also available for customers who prefer a fully enclosed internal finish.
Key Features
- 16.6m² dual‑zone layout combining an open gazebo and enclosed sliding‑door room
- Two solid 28 mm timber walls for privacy and weather protection
- Two full‑height sliding glass walls for natural light and seamless indoor‑outdoor flow
- Decorative balustrade fencing on the open gazebo section
- Pent roof design for a modern, streamlined appearance
- Heavy‑duty 120×120 mm posts for strength and stability
- Optional floor kit for the enclosed room
- Single‑glazed toughened glass as standard

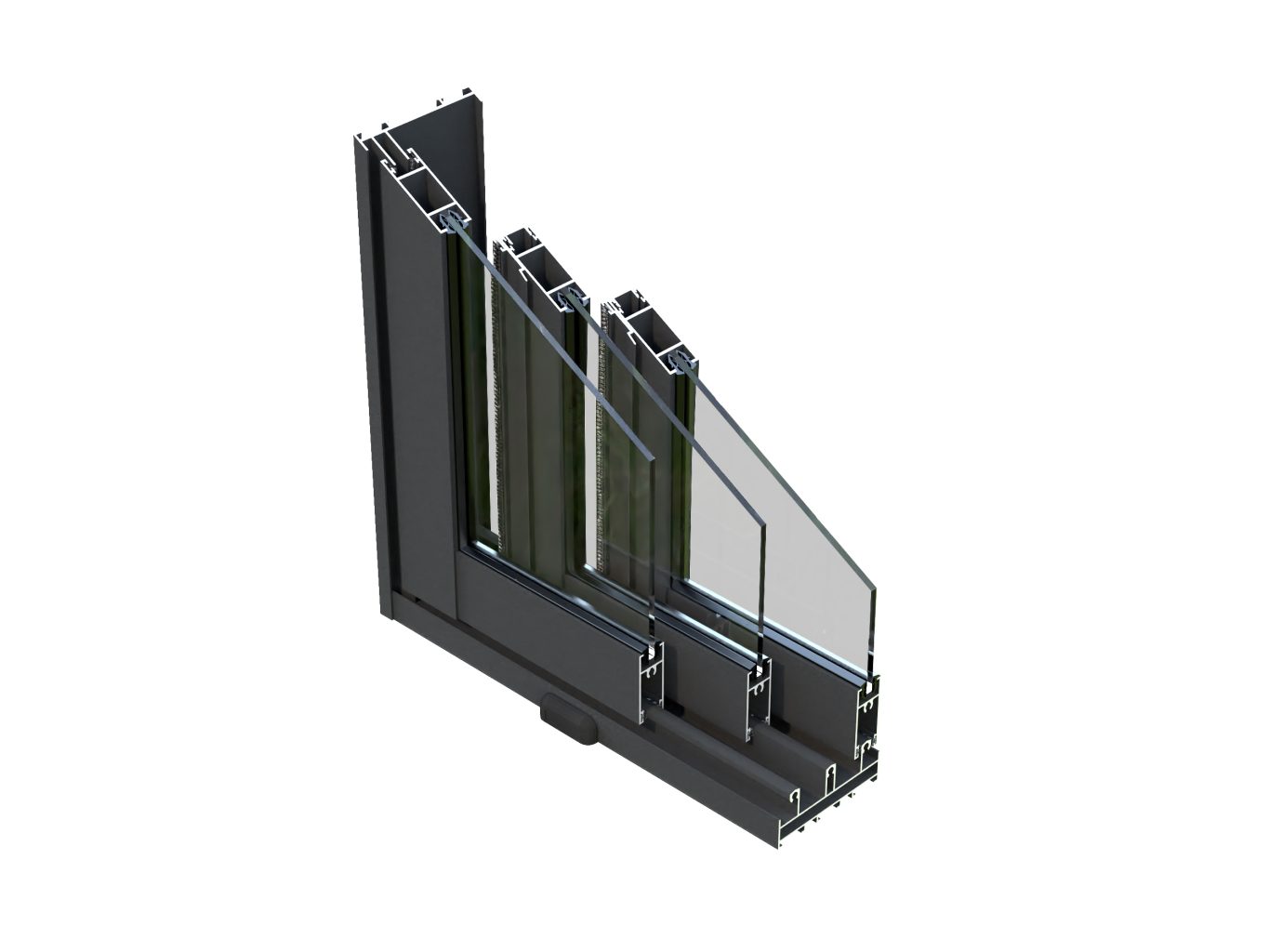

- Upgrade available to 4‑16‑4 mm double‑glazed toughened glass
- Modular construction compatible with Palmako Connect wall and fence modules
- Perfect for garden bars, lounges, studios, hot tub shelters, or entertainment spaces

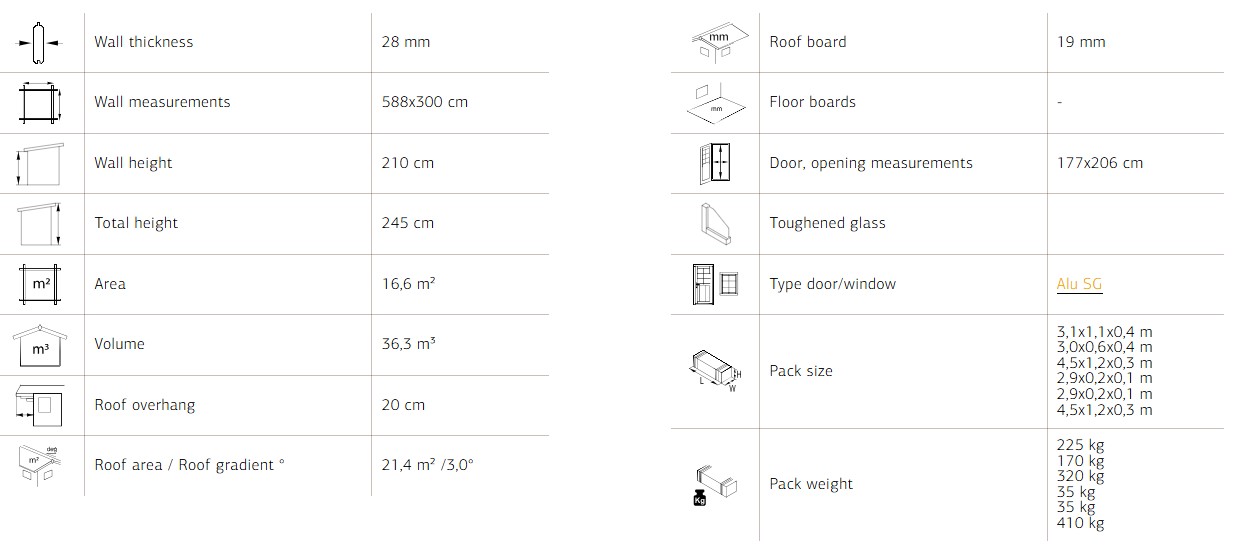

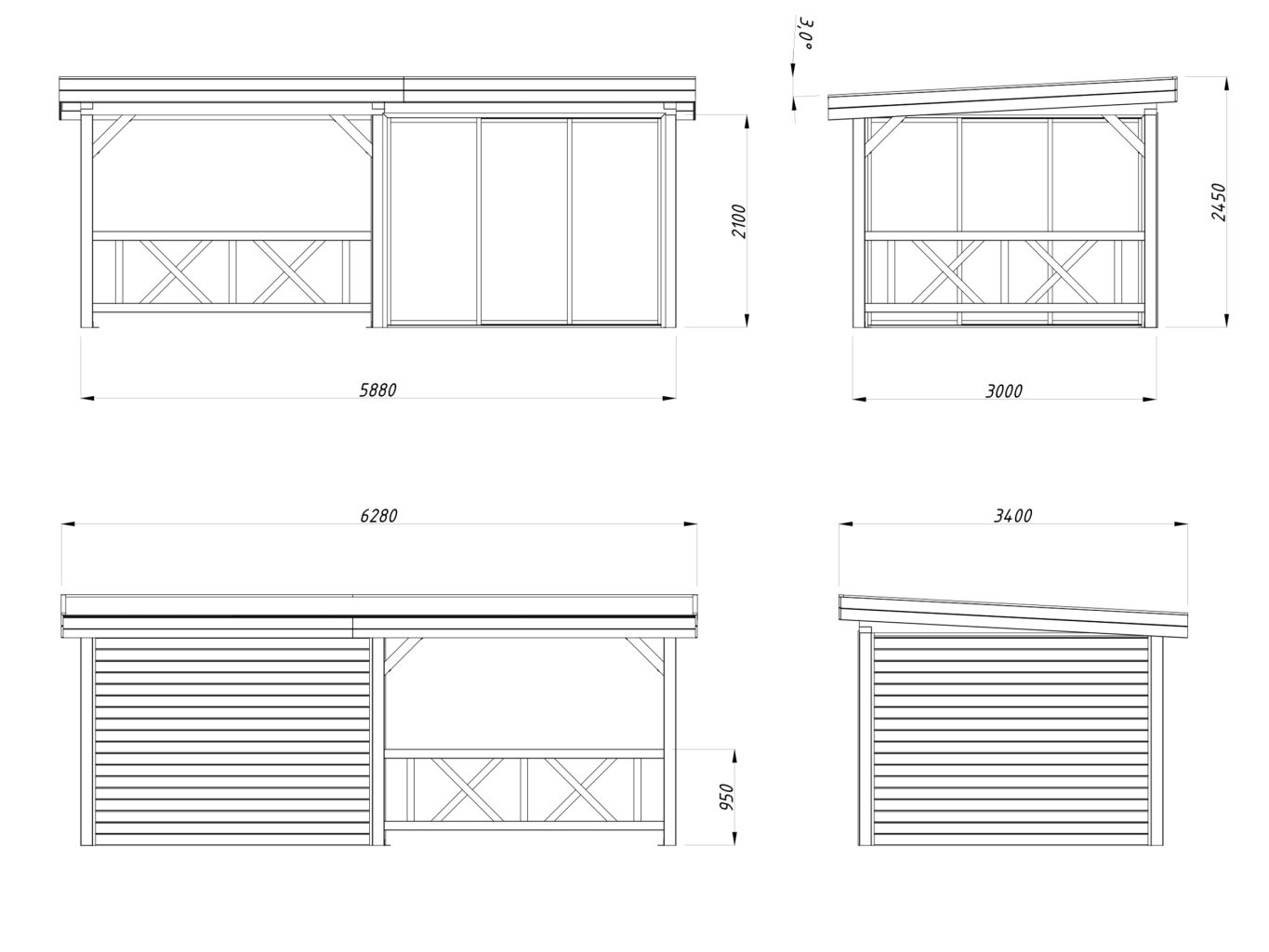

Dimensions & Specifications

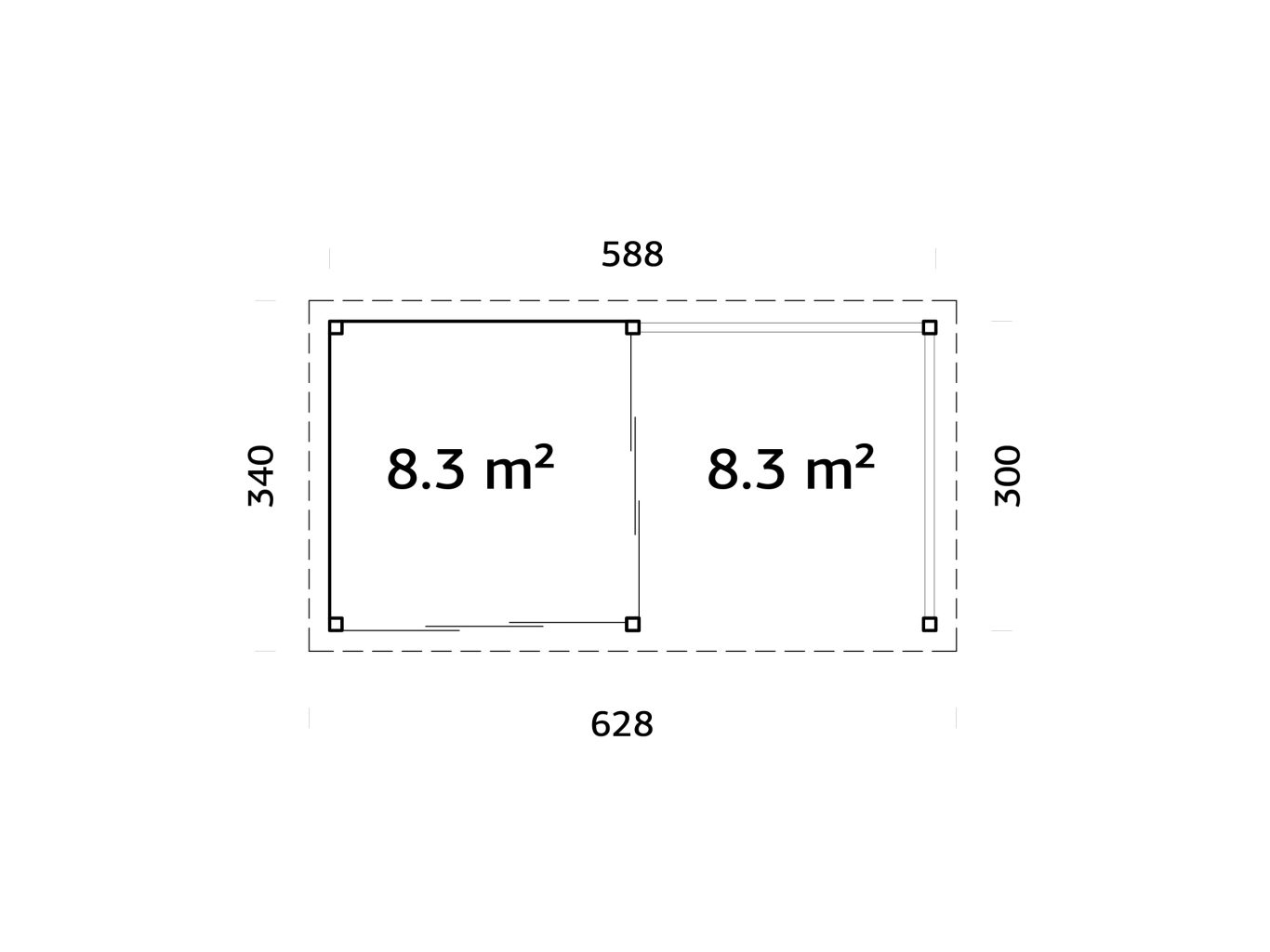

Overall Size
- External footprint: 588 × 300 cm
- Total area: 16.6 m²
- Wall height: 210 cm
- Total height: 245 cm
- Roof gradient: 3° pent roof
Timber & Glass Components
- Posts: 120 × 120 × 2100 mm
- Solid wall boards: 28 mm Nordic spruce

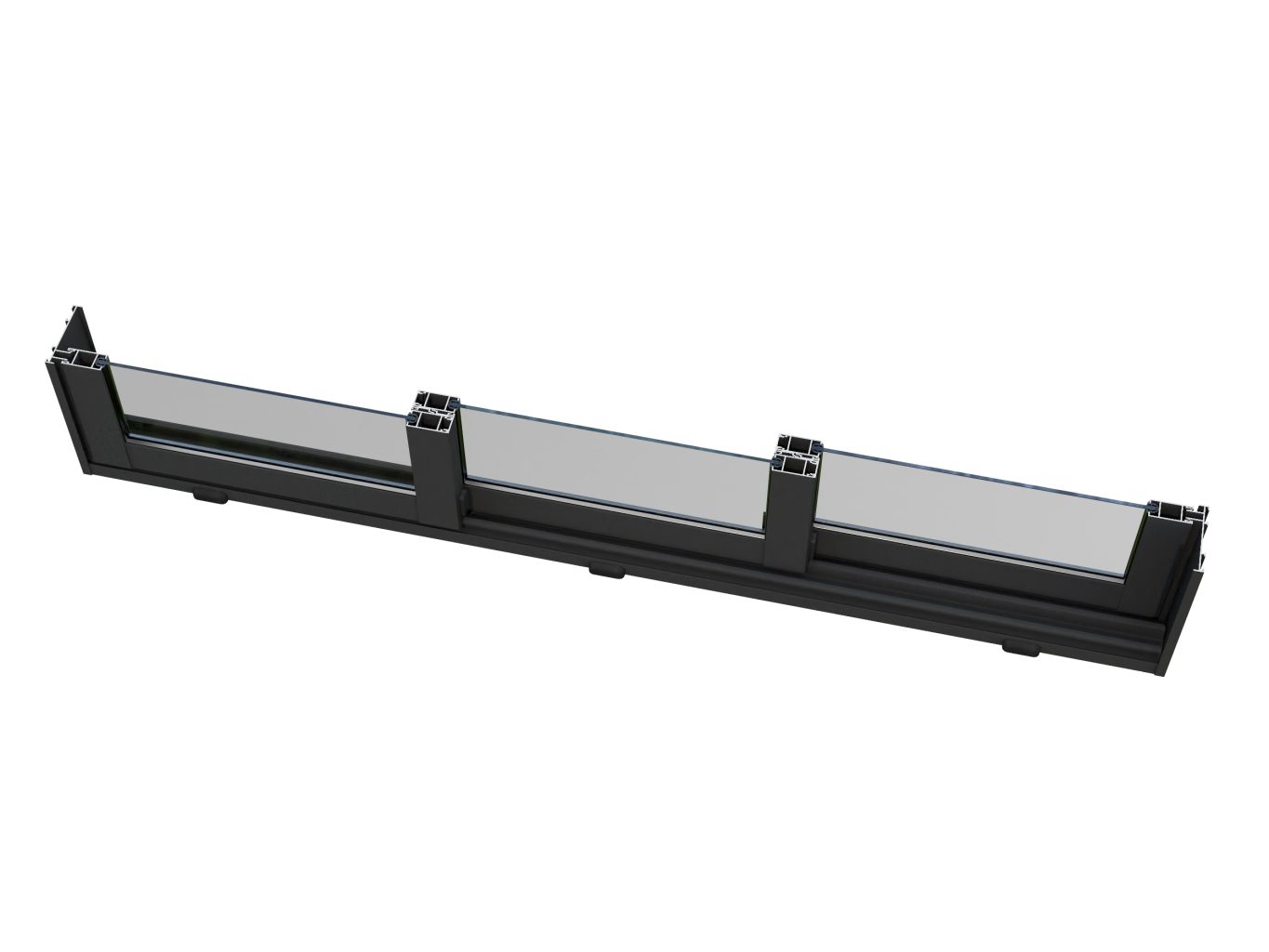

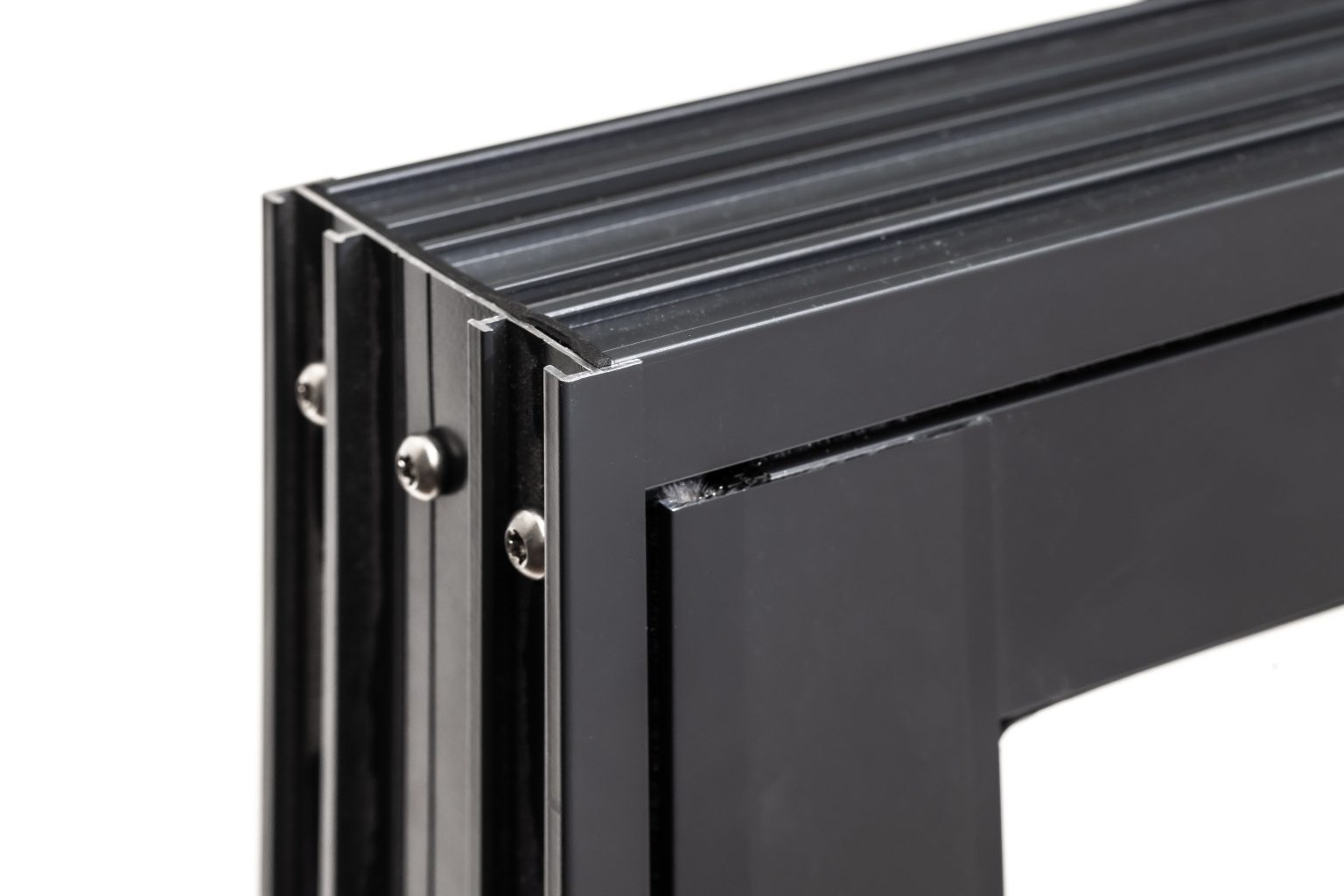

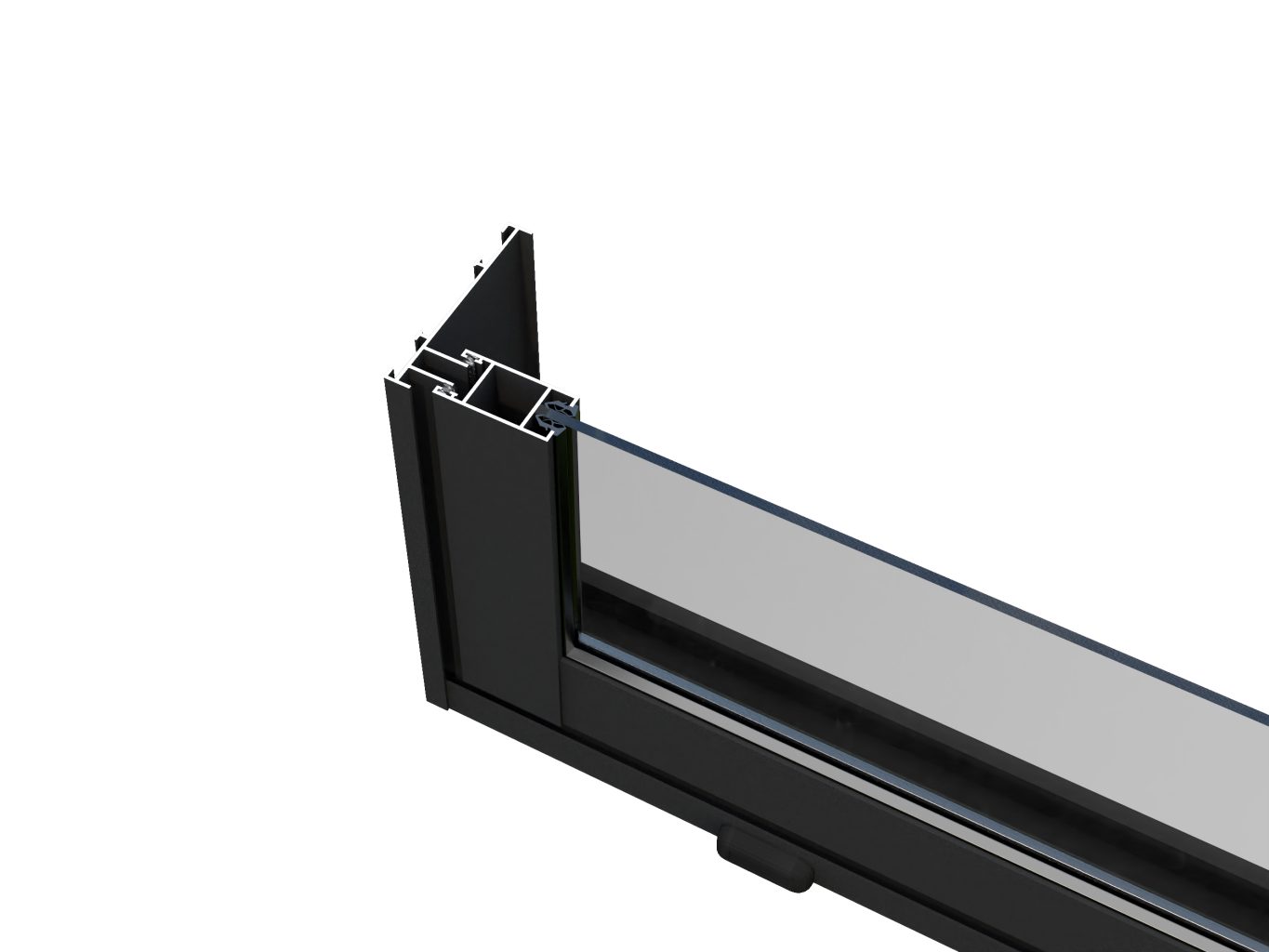

- Sliding glass doors: aluminium‑framed toughened glass (upgradeable to 4‑16‑4 mm)
- Roof boards: 19 mm tongue‑and‑groove
- Balustrade fence modules: LA90‑2808 decorative timber sections
Pack Information
- Delivered in multiple labelled packs
- Includes all fixings, brackets, screws, and metal components
- Full installation manual supplied
- Installation service available — please contact us
Ideal Uses
- Garden Bar & Entertainment Pavilion – The open gazebo is perfect for seating and socialising, while the enclosed room provides a sheltered bar or serving area.
- Outdoor Lounge / Chill‑Out Room – Enjoy open‑air relaxation with the option to retreat into a cosy glazed room.
- Hot Tub Shelter – Place the tub under the open gazebo and use the enclosed room as a changing or relaxation space.
- Home Studio / Workspace – Bright glazing and solid walls create a comfortable creative or remote‑working environment.
- Dining & Social Space – Open and enclosed zones allow flexible hosting in all weather conditions.
Why Choose the Lenna 403 Slide?
- Dual‑Zone Versatility – A perfect blend of open gazebo charm and enclosed room practicality.
- Premium Nordic Timber Quality – Manufactured by Palmako using slow‑grown spruce for strength and longevity.
- Modern Sliding Glass System – Full‑height glazing provides panoramic views and smooth access.
- Upgrade to Slide Plus – Double glazing enhances insulation for extended seasonal use.
- Modular Construction – Compatible with Palmako Connect walls and fencing for future customisation.
- Easy Assembly – Supplied with detailed manuals, labelled components, and all required fixings.
Additional information
| Building Type | |
|---|---|
| Base Depth Range (m) | Above 5.0m |
| Base Width Range (m) | |
| Base Size Width (m) | |
| Base Size Depth (m) | |
| Ridge Height | |
| Roof Style | |
| Model Footprint | |
| Delivery (Weeks) | |
| Fast delivery | |
| Manufacturers Warranty (Years) | |
| Product Size | Medium Sized Models |
| Floor Thickness | |
| Wall Thickness | |
| Wall Type | Ballustrade, Full Wall, Slide Glass Wall |
| Double Glazing |
Our Installation Service
Our expert fitting team can install any building available on our website across the UK. With years of experience you’ll be sure that our teams will provide you with the best possible service on the market. We calculate all of our installation prices based on your exact requirements, so please get in touch by either requesting a quote or giving us a call on +34 932 205118.
Don’t worry if you’ve already purchased your timber building, we can install that too! Be sure to fill out the form below with the building manufacturer and model number and our team will be able to provide a quote.
Get a quote
To get a quote on the installation of your timber building simply fill in the form. A member of our team will then contact you with a quote for the elements you require.
❓Below are many of the Frequently asked questions we get about our range of Pent Sloping Roof Interlocking Log Cabins & Summerhouses. Use the down arrows to the right to reveal the answers
A pent roof cabin offers a sleek, modern look with a lower profile that’s ideal near boundaries. Its single‑slope roof provides efficient rainwater runoff and allows for EPDM rubber roofing, which is long‑lasting, low‑maintenance, and leak‑free — making it a practical and contemporary choice.
EPDM rubber roofing is highly durable, long‑lasting, and weather‑resistant. It has no joins, which means it won’t leak, and it provides a clean, modern finish ideal for pent roof designs.
EPDM roofing can last 40–50 years with minimal maintenance, significantly longer than felt shingles. Cedar shingles offer a natural look but require more upkeep, while EPDM is virtually maintenance‑free.
Pent roof cabins are specifically designed for EPDM roofing, which we strongly recommend. Alternative roofing materials are not generally advised due to performance and design considerations.
Yes, pent roof cabins are a popular choice for garden offices and studios. Their modern design, efficient roofing, and insulation options make them ideal for year‑round use. They also give the internal appearance of larger space compared with a similar footprint Apex model.
Absolutely. Pent roofs are built with a slight slope to ensure effective rainwater runoff, preventing pooling and protecting the structure. Linked with our guttering options a Pent model only requires guttering at the back of the building.
Pent roof cabins are designed with a single slope roof, which naturally directs rainwater to one side. Adding guttering is optional but recommended if you want to:
- Protect the base and walls by channelling water away from the structure.
- Reduce dirt splashback and tidelines caused by rain hitting the ground near the cabin.
- Harvest rainwater for garden use, as guttering makes collection simple.
Because the roof falls in one direction, guttering is only required along that single edge.
Yes, insulation is available for floors and roofs as standard upgrades. We can also provide thicker insulation or wall insulation if required.
Yes, wall insulation and additional interior cladding can be added as our best and highest upgrade. Whilst this will significantly increase the cost of the building it will provide additional warmth. The downside to internal wall insulation is you lose the look of a timber building unless you opt for timber cladding.
Pent roof cabins are often chosen for their sleek, contemporary look. They complement modern gardens and urban spaces, whereas apex and hipped roofs offer a more traditional aesthetic.
Pent roofs provide a lower external profile, which can be useful near boundaries, while still offering generous internal headroom.
Yes, the lower height of pent roof cabins often makes them more suitable for boundary placement, helping to comply with planning regulations.
Our cabins are available in a variety of log thicknesses to suit different needs. Thicker logs provide greater strength, insulation, and durability, while thinner logs are ideal for budget‑friendly summerhouses. The thickness of the logs is shown in the individual product specifications, but we have models that have 28mm, 40mm, 44mm 68mm and 70mm interlocking logs. If you need thicker logs, please contact us as we can product buildings using a bespoke service.
You can select from full‑length windows, ¾ height windows, or ½ height windows depending on the model. Each style offers a different balance of light, privacy, and aesthetics.
Most of our cabins are supplied with premium sealed double glazing for excellent insulation and energy efficiency. Budget models may come with single glazing, which is clearly listed under the specifications tab.
Standard options include single solid doors, single half‑glazed doors, double doors, wooden bifold doors, and sliding doors. On selected models, you can upgrade to UPVC doors and windows for enhanced security and low maintenance.
Optional Insulation is available on most pent, apex, and hipped models unless otherwise stated. We also offer upgrades to thicker insulation or wall insulation if you require year‑round comfort.
As everyone has difference budgets and requirements, we have asked customers how they prefer to see the breakdown of the prices and we feel this is the most transparent way. Customers can select the individual components to build their own package which is priced individually so you know what you are getting. Nothing hidden.
All cabins come with a manufacturer’s warranty covering structural integrity and materials. Full details are provided with each product.
In most cases, summerhouses fall under permitted development rights and do not require planning permission. However, this depends on size, height, and placement, as well as your location, so we recommend checking with your local authority.
Delivery times vary depending on the model and your location. Installation can typically be completed within a few days once the base is prepared. If you need a building urgently then please contact us and we may be able to recommend a model available for immediate shipment.
Yes, many models allow customization. Speak to our team about adding extra doors, windows, or other upgrades.
We recommend treating the timber with a high‑quality timber treatment and we recommend Sadolin for its quality, ease of application and longevity. Regular re-application of timber treatment and checks on roofing and glazing will help maintain performance.
Many customers choose to assemble their cabins themselves using the provided instructions. We also offer professional installation services with our own employed installation team if you prefer a hassle‑free experience. Many customers prefer us to install their building especially as they may not have the technical ability, experience or tools required. Our teams are very experienced and offer a very high quality of service backed with years of many exceptional reviews. If you are using a third-party fitter, then take care to ensure they have the correct experience. As our fitters are all directly employed by Cabins Unlimited, we are best placed to install your building. Check if your cabins supplier has their own team as many outsource with negative consequences should something go wrong. Not something you will experience with Cabins Unlimited!
A solid and perfectly level base is essential for any interlocking summerhouse or log cabin. We recommend our Eco-Base Plastic Grid System called Probase owing to it allowing water to drain away from the base of the building but other alternatives including concrete pads, paving slabs, or a timber frame foundation to ensure stability and longevity.

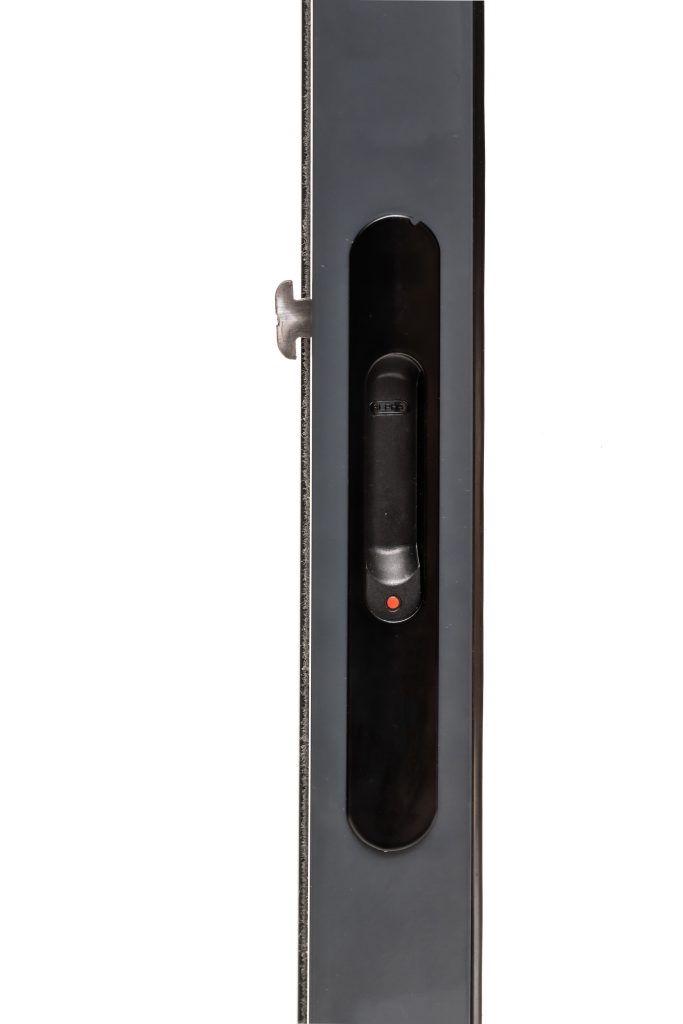

All doors and windows are fitted with quality locks. UPVC upgrades provide additional security and peace of mind.
Yes, with insulation upgrades and a suitable heating source, your cabin can be enjoyed comfortably throughout the year. Please talk to us about our range of air conditioning options that are perfect and cost-effective ways of heating and cooling your building throughout the year.
We offer flexible payment options on many models. Please check the product page or contact our team for details.
